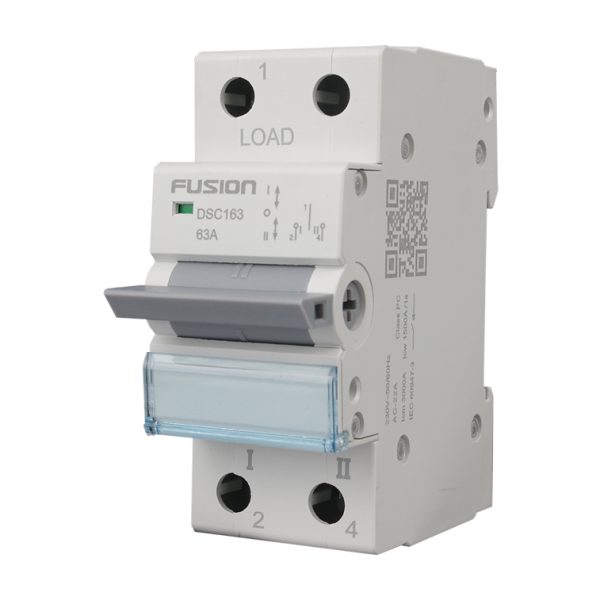

Changeover Switch DIN Rail Mount 1 Pole 230V AC 63A

Changeover Switch DIN Rail Mount 1 Pole 230V AC 63A

$65.30 ex. GST

36mm Width

AC-22A

FUSION Series

Bulk Quantity Discounts
1-56+
$65.30 ex. GST$62.19 ex. GST

Description

DIN Rail Mount Changeover Switch, 1 Pole, 230V AC, 40A

Ensure reliable power switching with Connected Switchgear’s 1 Pole DIN Rail Changeover Switch, rated at 63A and 230V AC. Designed for fast and easy installation, this compact switch is ideal for residential, commercial, and industrial applications requiring a dependable transfer between two power sources—such as mains and generator, or grid and solar.

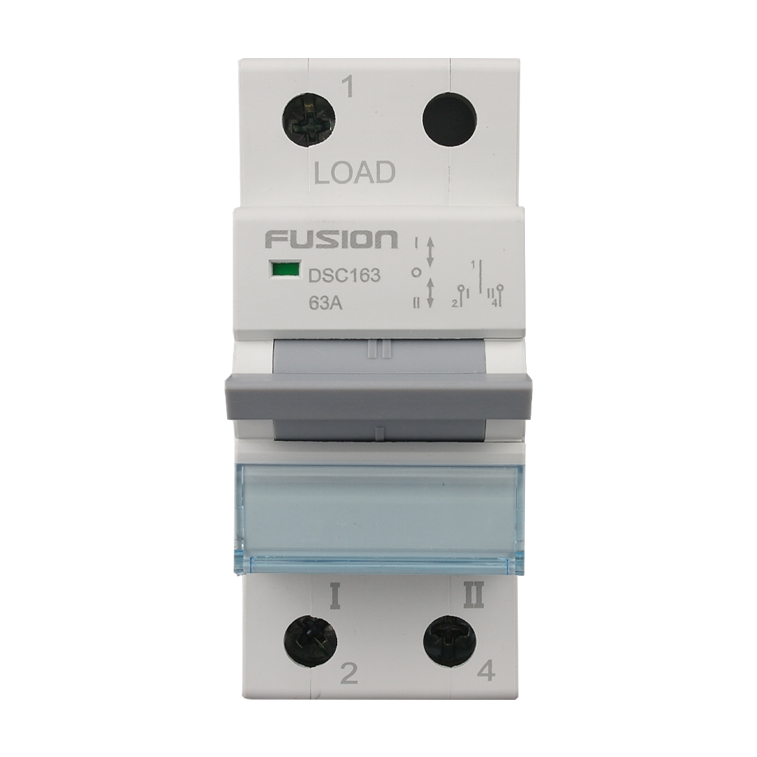

This manually operated changeover switch features a rotary handle with three clear positions: I (Power Source 1), 0 (Off), and II (Power Source 2), allowing for safe and efficient control. Engineered to mount directly onto standard DIN rails, it integrates seamlessly into switchboards and distribution panels.

The front panel includes a label window, allowing for custom identification of circuits or power sources—ideal for improving clarity and safety in complex installations.

Features:

  • Rated Current: 63A

  • Voltage: 230V AC

  • Configuration: 1 Pole

  • DIN rail mountable for easy installation

  • Manual rotary switching (I-0-II positions)

  • Label window panel for easy circuit identification

  • Ideal for mains-to-generator or grid-to-solar switching

We offer a 5 Year Replacement Warranty on our DIN Rail Changeover Switches. Click here to view our Warranty Policy, or even watch it here!

Product Code

DSC163

Size (HxWxD)

8.5 x 3.6 x 7.5cm

Related Products

DBSMC12, DBFMC12, DBFMC12-B

Series

FUSION Series

IP Rating

IP20

Volts

230V

Amps

63A

Power

AC

Poles

1 Pole

Configuration

3 Position Control IOII, 1 Normally Open + 1 Normally Closed Contacts

Colour

Grey

Compliance
  • AS/NZS 60947-3
  • IEC 60947-3
Approval

SAA Certification

Features
  • 36mm Width
  • Contacts: 1NO / 1NC
  • Utilization Category: AC -22A
  • Max Cable Size: 16mm2 Flex
  • 3 Position I-O-II
  • Max Cable Size: 50mm2
DIN Rail Changeover Switches Data Sheet
