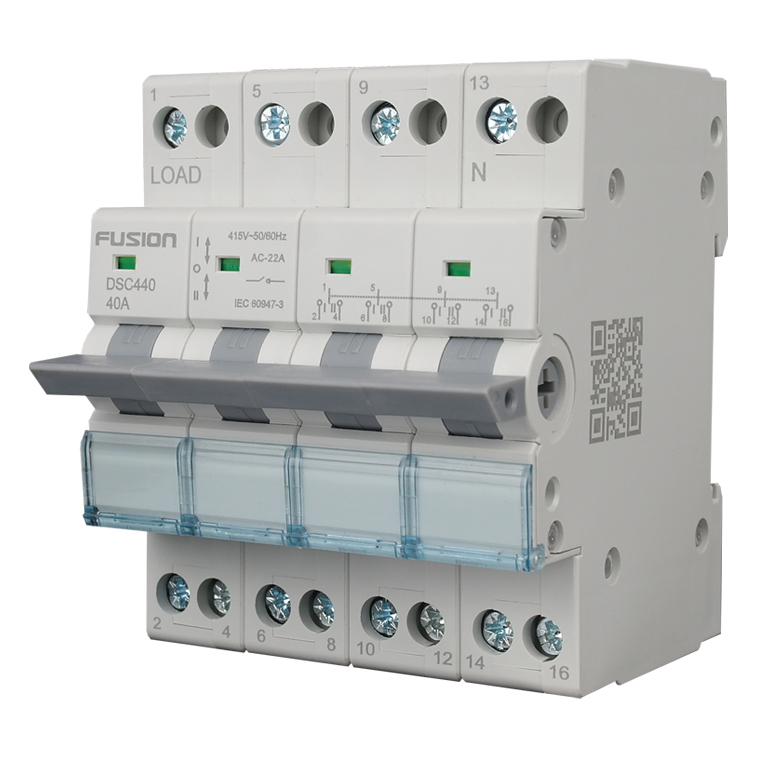

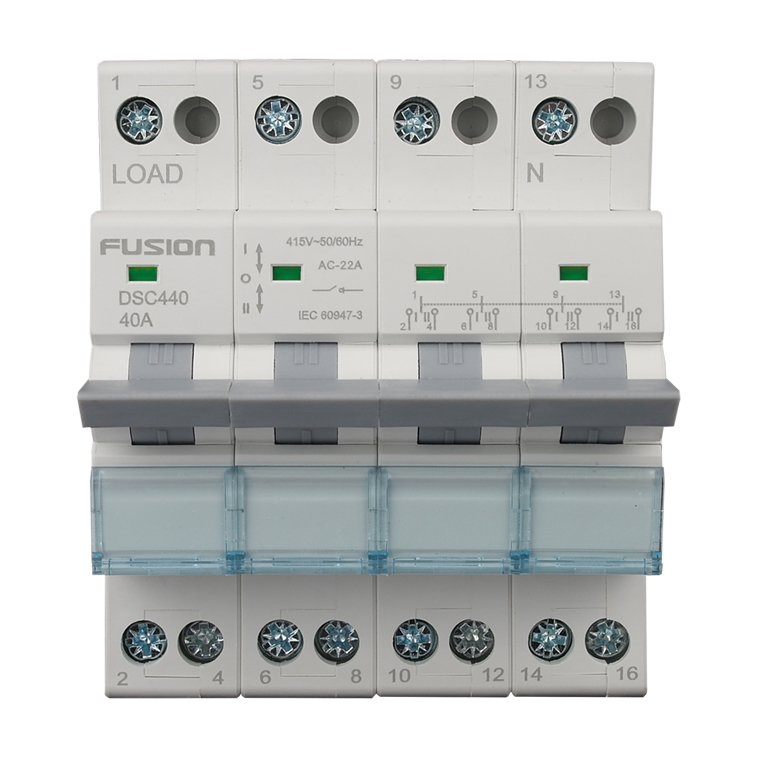

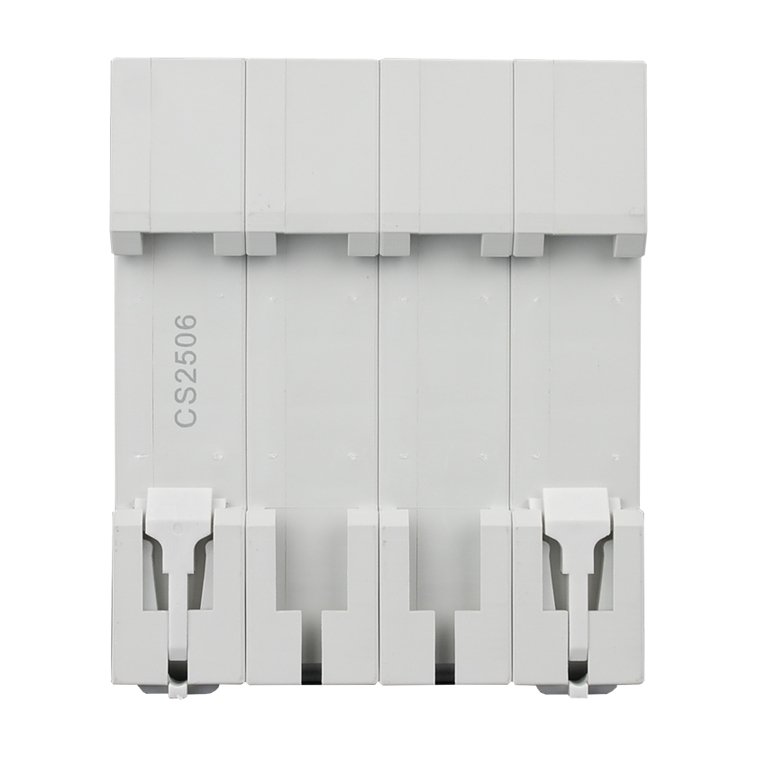

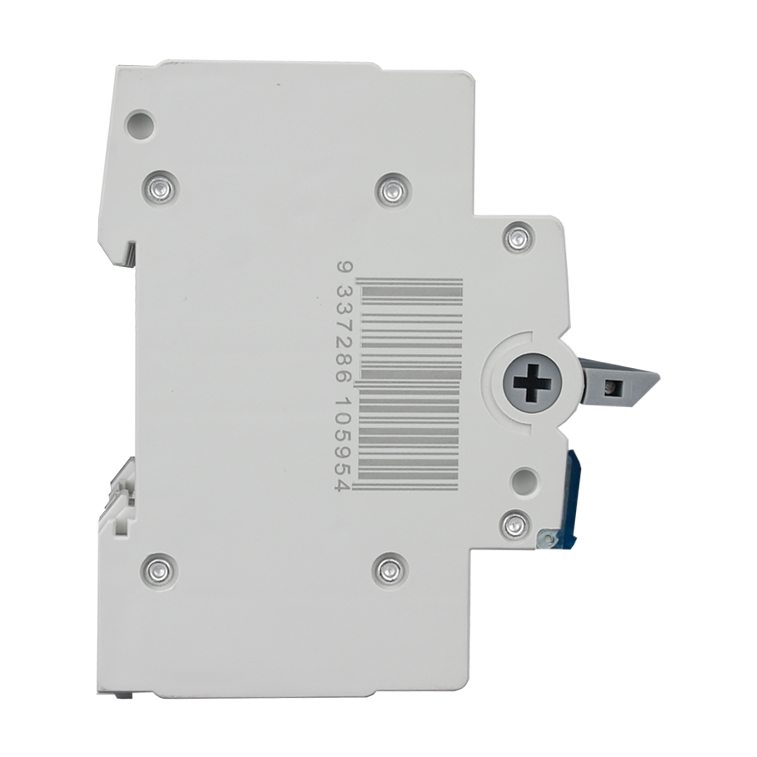

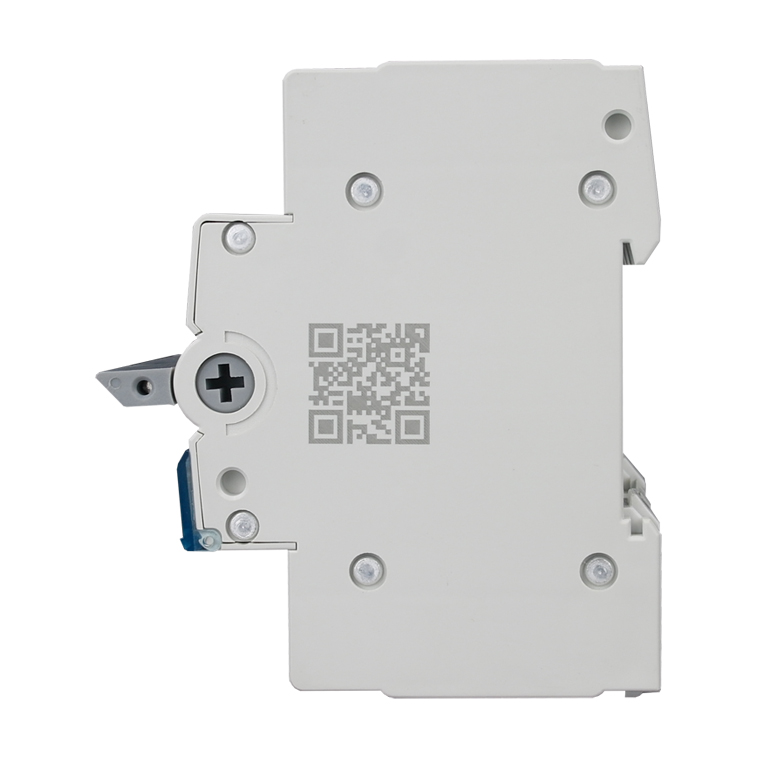

Changeover Switch DIN Rail Mount 4 Pole 400V AC 40A

Changeover Switch DIN Rail Mount 4 Pole 400V AC 40A

$112.61 ex. GST

72mm Width

AC-22A

FUSION Series

Bulk Quantity Discounts
12+
$112.61 ex. GST$107.24 ex. GST

Description

DIN Rail Mount Changeover Switch, 4 Pole, 400V AC, 40A

Ensure reliable power switching with Connected Switchgear’s 4 Pole DIN Rail Changeover Switch, rated at 40A and 400V AC. Designed for fast and easy installation, this compact switch is ideal for residential, commercial, and industrial applications requiring a dependable transfer between two power sources—such as mains and generator, or grid and solar.

This manually operated changeover switch features a rotary handle with three clear positions: I (Power Source 1), 0 (Off), and II (Power Source 2), allowing for safe and efficient control. Engineered to mount directly onto standard DIN rails, it integrates seamlessly into switchboards and distribution panels.

The front panel includes a label window, allowing for custom identification of circuits or power sources—ideal for improving clarity and safety in complex installations.

Features:

  • Rated Current: 40A

  • Voltage: 400V AC

  • Configuration: 4 Pole

  • DIN rail mountable for easy installation

  • Manual rotary switching (I-0-II positions)

  • Label window panel for easy circuit identification

  • Ideal for mains-to-generator or grid-to-solar switching

We offer a 5 Year Replacement Warranty on our DIN Rail Changeover Switches. Click here to view our Warranty Policy, or even watch it here!

Product Code

DSC440

Size (HxWxD)

8.5 x 7.2 x 7.5cm

Related Products

DBSMC12, DBFMC12, DBFMC12-B

Series

FUSION Series

IP Rating

IP20

Volts

400V

Amps

40A

Power

AC

Poles

4 Pole

Configuration

3 Position Control IOII, 4 Normally Open + 4 Normally Closed Contacts

Colour

Grey

Compliance
  • AS/NZS 60947-3
  • IEC 60947-3
Approval

SAA Certification

Features
  • 72mm Width
  • Contacts: 4NO / 4NC
  • Utilization Category: AC -22A
  • Max Cable Size: 10mm2 Flex
  • 3 Position I-O-II
  • Max Cable Size: 10mm2
DIN Rail Changeover Switches Data Sheet
