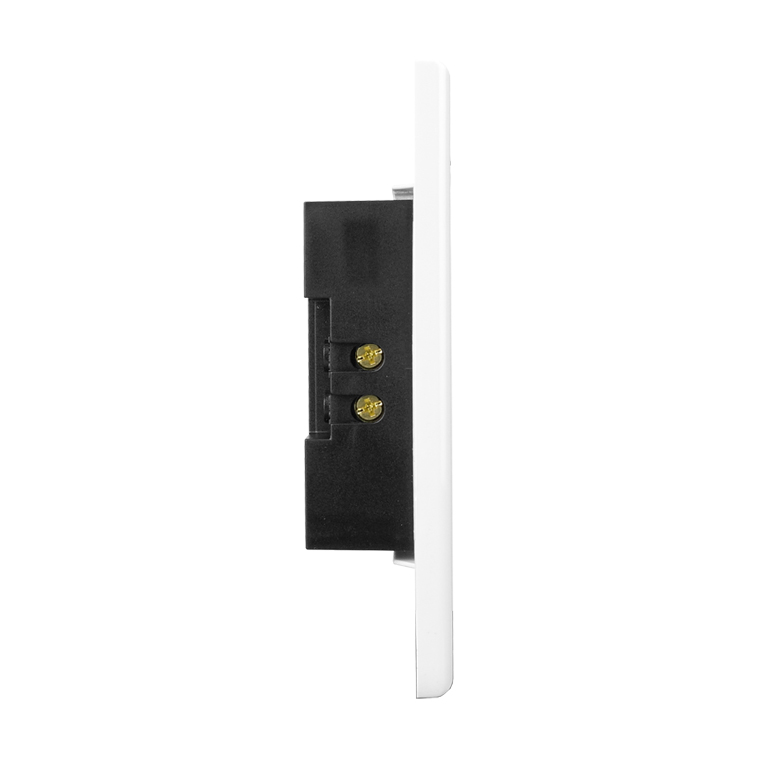

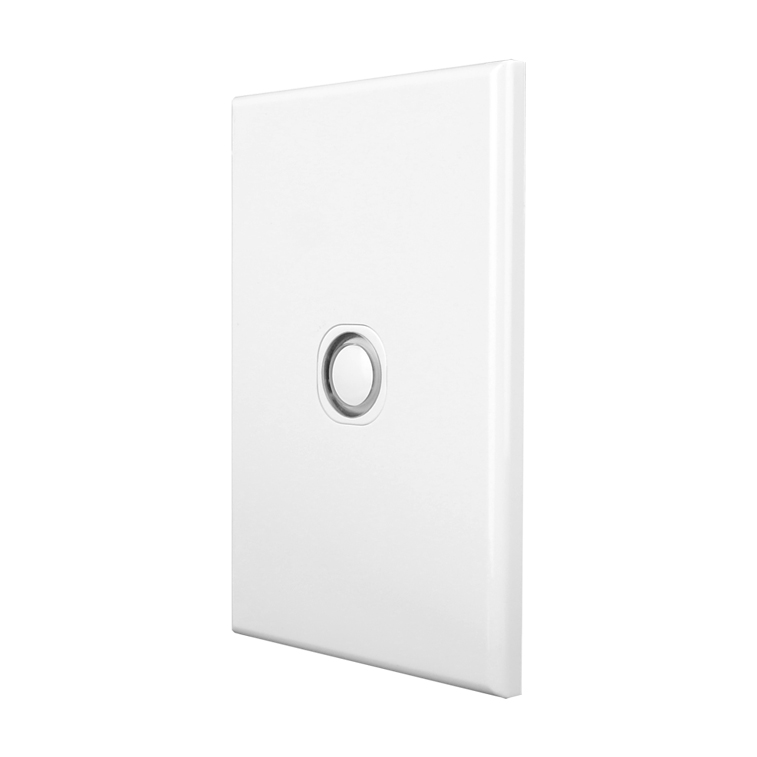

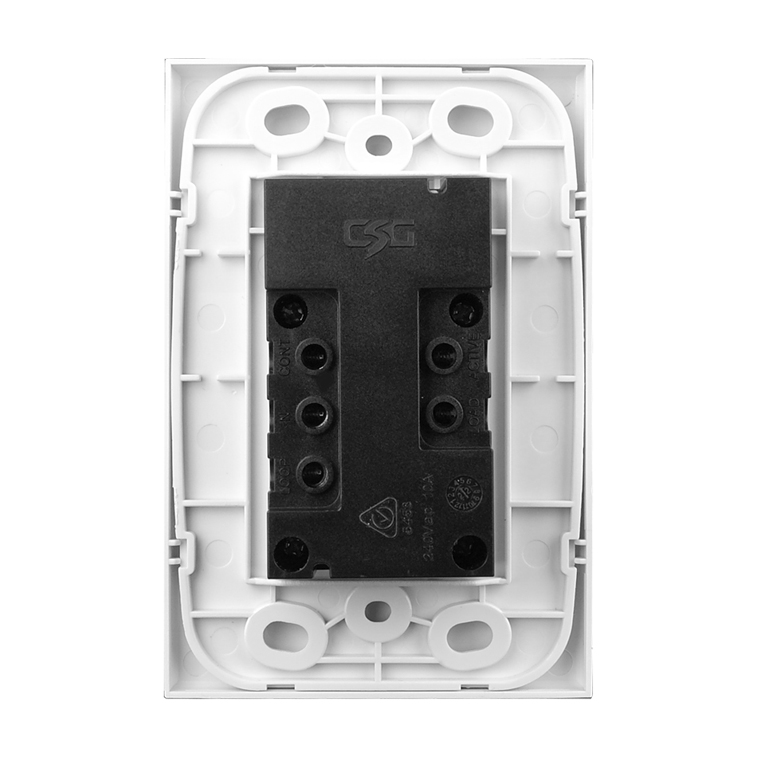

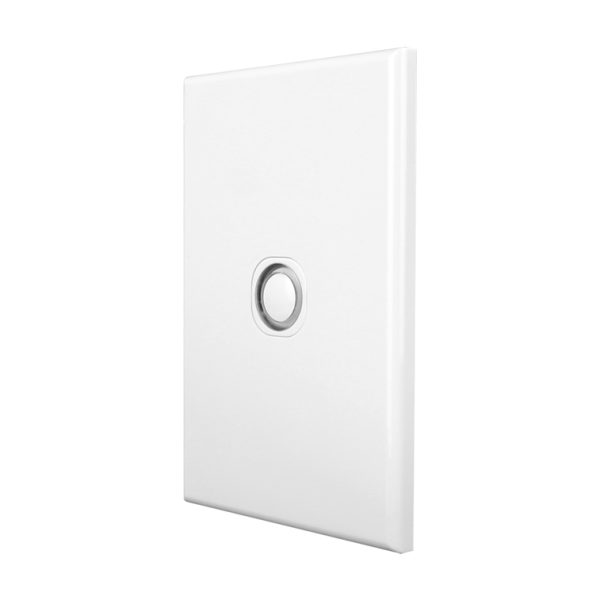

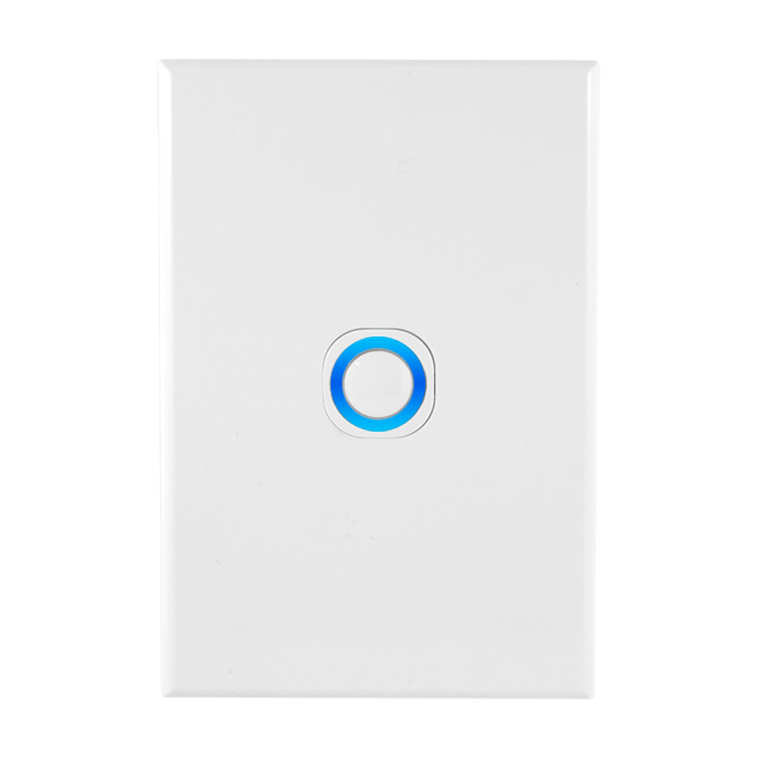

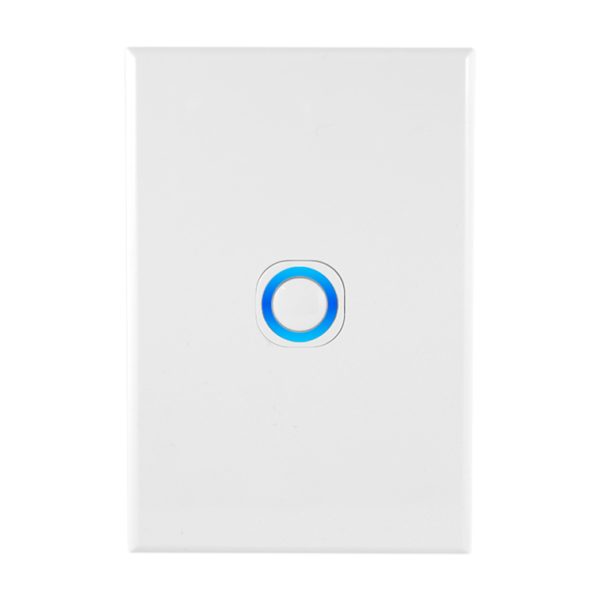

Electronic Time Delay Switch with Blue LED Indicator

Electronic Time Delay Switch with Blue LED Indicator

$94.78 ex. GST

240V AC 2400W 30 sec – 480 Minutes
White with Blue LED Indicator
GEO Series
Product Code: LSTDE-L
Warranty: 5 Year In House
Bulk Quantity Discounts
1-45+
$94.78 ex. GST$90.25 ex. GST

Description

Indoor timer controlled switches are a great way to save time and money. Connected Switchgear’s latest release of electronic time delay switches come with a host of usable features for a wider variety of applications. They are great for bathrooms, pantries, stairways and walk in robes. Our latest 240V AC electronic time delay switch boasts a full 2400W power rating and come with a unique load current limiting circuitry that prevents overload of capacitance luminaires and inductive loads that would normally reduce the life of electronic switch contacts.

Connected Switchgear’s new electronic time delay switch is the first time delay switch that can be installed in both 2 and 3 wire configurations. Installed in the basic 2 wire mode without a neutral connection requires a minimum load of just 5W to operate. Choosing to install as a 3 wire connection with a neutral terminal will eliminate any load type restrictions.

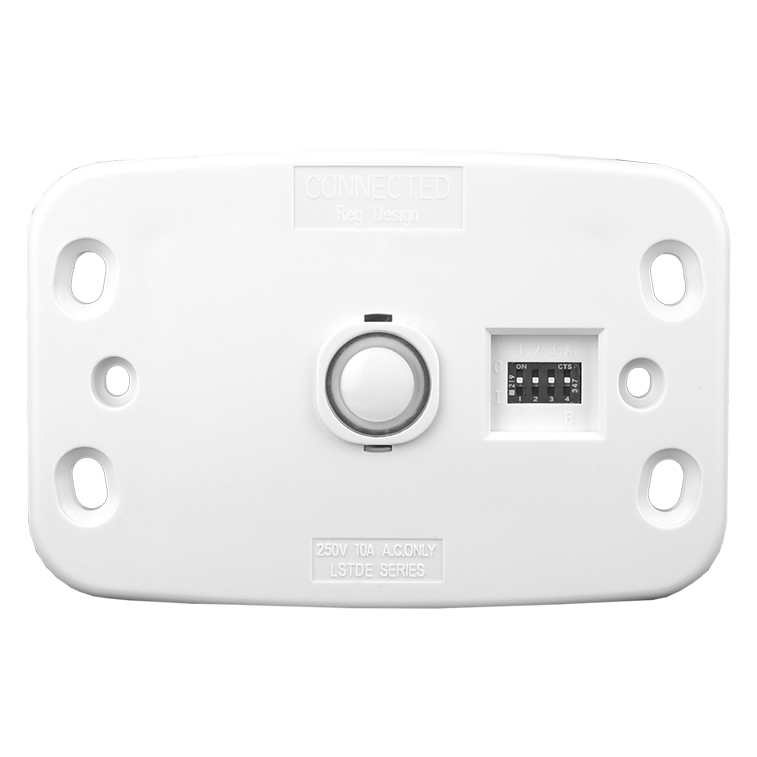

A total of 8 pre-defined ‘time out’ times ranging from 30 seconds to 480 minutes can be easily selected. Simply remove the front cover plate and select the corresponding toggles. Three function modes are available. These are repeat time out, turn off and run on timer.

LED Indicators, available in red or blue, allow for visual identification of the switch in dimly lit areas. They also flash when the time setting has been actuated and the set time has begun countdown. LED indicators and in both black and white plate colour. These allow for applications that may require heating or cooling visual status indicators.

WARRANTY

As with all of our products, this product comes with a 5 Year In House Warranty. That’s right, 5 years! This is so that you can have peace of mind knowing that if a fault arises within a five year period, we will cover the cost of replacing the product and it’s installation by an authorised electrician. In other words, we’ve got your back. Check out our online Warranty Policy for all terms and conditions, otherwise you can view it here!

Product Code

LSTDE-L

Related Products

LSTDEB-L, LSTDER-L, LSTDERB-L, MLCD

Series

GEO Series

Volts

240V AC

Amps

10A

Power

2400W

Configuration

Vertical or Horizontal

Colour

White with Blue LED Indicator

Compliance
  • AS/NZS 60669.2
Approval

EESS-210766-0

Features
  • 2 Wire with Optional 3 Wire Applications
  • Time Out Range: 30 seconds to 480 minutes
  • 5W Minimum Load in 2 Wire Applications
  • Over Current Protection Circuitry
  • 3 Programs: Timeout, Turn Off, Run On Timer
  • Blue or Red LED Status and Timeout Indicator with White or Black Plates
  • Easily Configurable Settings By Removing Cover Plate
  • Slim at 6.5mm Thick
Downloadable PDFs

LSTDE-L.pdf

LSTDE-L.pdf
