Mech 250V AC 75VA – 3 Position Rotary FAN BLACK

Mech 250V AC 75VA – 3 Position Rotary FAN BLACK

$18.56 ex. GST

AC Mechanism
Black
Product Code: M163PB
Warranty: 5 Year InHouse
Bulk Quantity Discounts
1-4950+
$18.56 ex. GST$17.67 ex. GST

Description

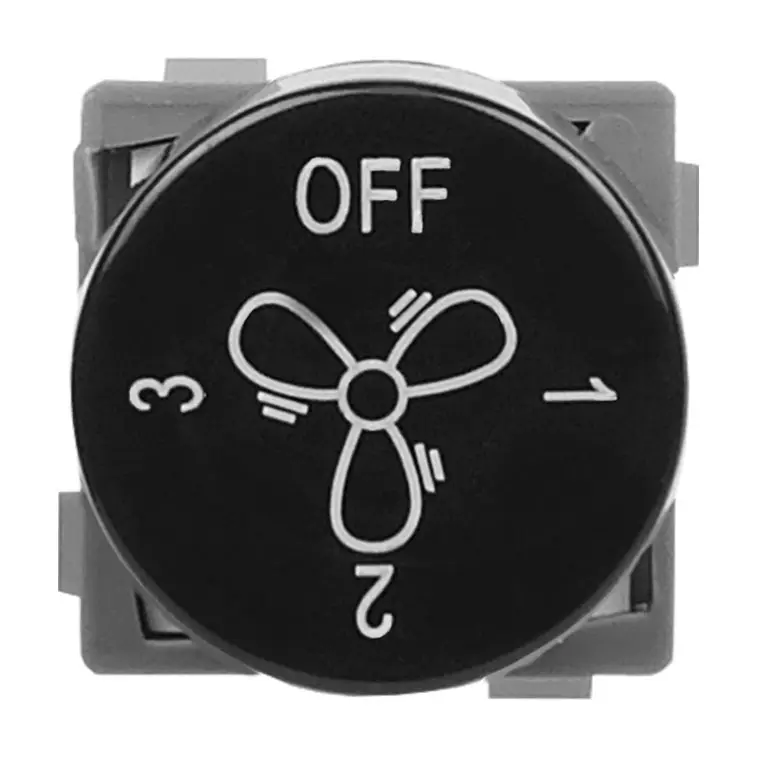

3 Position Rotary Mechanism FAN BLACK 75VA 250V AC

Connected Switchgear offers a wide variety of mechanisms to complement our range of wall switches and socket outlets.

The M163P is rated at 240V AC 75VA with rotary switching action. This switch has 3 positions for variable control of light inductive loads. Our mechanisms are manufactured from polycarbonate material. This is so they won’t yellow or fade with time. The switch contacts are made from a high percentage silver and nickel coating to prevent arcing. Terminal screws are solid brass.

The features of our 3 position rotary fan mechanism include:

  • Marked with a Fan Symbol
  • Polycarbonate Material

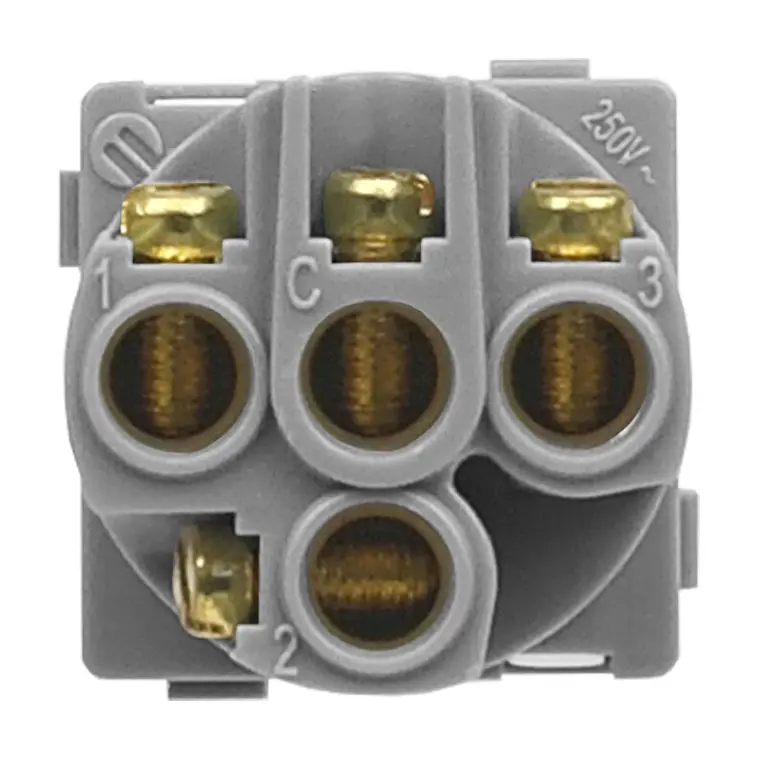

  • Brass Terminal Screws
  • Silver Nickel Switch Contacts
  • Ratings include 250V AC 10AX, 16AX, 25A and 32A
  • Available and Black and White
  • Optional Dolly’s Available
  • Interchangeable with all Connected Switchgear Plates

As with all of our products, our 3 position rotary mechanism come with a 5 Year In House Warranty. That’s right, 5 years! This is so that you can have peace of mind knowing that if a fault arises within a five year period, we will cover the cost of replacing the product and it’s installation by an authorised electrician. In other words, we’ve got your back. Check out our online Warranty Policy for all terms and conditions, otherwise you can view it here!

Product Code

M163PB

Size (HxWxD)

2.2 x 2.2 x 4.3cm

Related Products

BS-PB2B, PB2B-L, SS-PB1B, LS102VB-L, BS-LS162VB, M10DPB

Series

Mechanisms

Volts

250V

Amps

75VA

Power

AC

Poles

1 Pole

Configuration

Vertical/Horizontal

Colour

Black

Compliance
  • AS/NZS 3100:2009
  • AS/NZS 3133:2013
Approval

SAA Approved

Features
  • 3 Position Rotary Mechanism
  • Polycarbonate Material
  • Brass Terminal Screws
  • Silver/Nickel Switch Contacts
  • Available in Black and White
  • Compatible with Clipsal Plates
Downloadable PDFs

Mechanisms 1.pdf
Mechanisms Data Sheet

Mechanisms Data Sheet
